IVF Lab

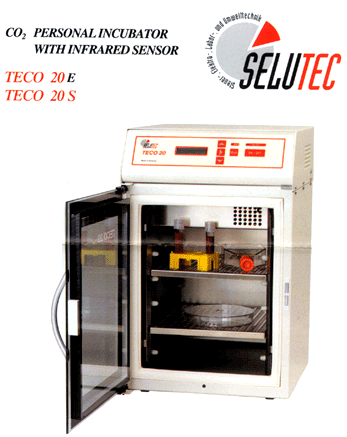

Introducing for the first time in india your personal CO2 Incubator



incubator



Description:

A new infrared-controlled CO2- Incubator designed for personal use. This incubator has been designed with just the right dimensions to be considered personal.

The microprocessor- Control guaranties precise, reproducible environmental condition's. Due to the advance horizontal air circulation, this incubator offers a temprature accuracy specification of +_0.5c, CO2 is regulated via infrared control.

Alarm messages guarantee total security in the event that the temprature or C02 concentration exceed their preset limits or in case of pressure drop inside the gas bottle.

TECO 20 has been also especially designed by an IVF biologist for IVF biologist for their IVF, ICSI, cryopreservation, andrology and genetic laboratories.



It offers following advantages

  • Compact dimensions make it transportable & easy to place
  • Stainless steel double walled interior
  • Interior parts can be dismantled
  • Chemicals resistant coated exterior
  • Gas isolated double glass door with magnetic seals
  • I-Iigh C02 & Tp. accuracy, suitable for long term incubation of high sensitive biol. material like human embryos
  • TECO 20 allows culture of human / animal blastocysts or embryonic cells/ tissues
  • User friendly membrane key pad easy to clean
  • Easiness of interior cleaning
  • User friendly perametres setting
  • Advanced horizontal air circulation guarantees stable and reproducible environment
  • Auto zero calibration adjustable at any interval of time
  • C02 restored independently from cabinet humidity
  • No cabinet humidity necessary, thus less possibilities contamination
  •  C02 presetted value recovered up to 1min. after door opening
  • Audio & visual alarm messages assure optimal safety
  • Self diagnostic capabilities
  • Connection to PC through RS 232 interface for parameters recording (optional)

Technical specifications:

Dimensions- ext. : 340x335x 525 mm (Wx H x D)
Dimensions- int. : 230x275x325 mm (W x H x D)
Int. volume : 20 liters
Weight : 28 kg
Connected load : 65 VA
Gas pressure : 1 bar ±0,2
Temperature range : 5 'C above RT up to 45'C
Temperature accuracy : ± 0,5'K, microprocessor controlled
C02 range:microprocessor controlled microprocessor controlled : 0- 20 % infrared measurement,
microprocessor controlled
Standard preset : 5 %
Flow rate : 0- 20 ml / min, microprocessor controlled
C02 recovery : 1 min after 10 s. door opening
C02 accuracy : ±0,2 %
Gas source : 99,9 % pure C02 for medical use
Staittless steel shelves : 2 pieces

Safety Features:

TECO 20e/s confirms to CE- Requirements

Order Specifications s:

TECO 20 - e: 230v/50Hz Order No: 600.014-1
TECO 20 -s: with a dditional point of RS 232 Interface and pressure sensor, PC- Cable for RS 232 - 9- poles, incl. Windows Software WIN TE 1. 0 Analyzing systemfor supervising and controlling
TECO 20 - s: 230v/50Hz Order No: 600.014-1
Teco 20 e/s : Stainless steel shelves Order No: 010.150
